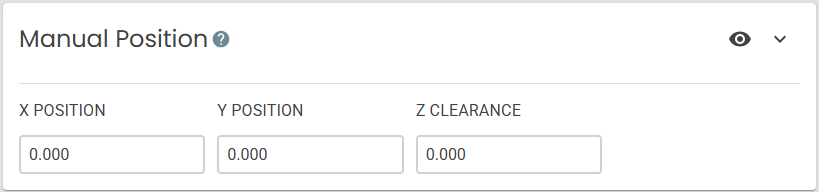

Manual Position
The Manual Position provides the location for loading and unloading tools along with the height for travel in the XY plane during a tool change.
Fields
Fields |
Description |
|---|---|
| X Position | MACHINE COORDINATE X for loading/unloading manual tools. |
| Y Position | MACHINE COORDINATE Y for loading/unloading manual tools. |
| Z Clearance | Height at which the spindle will clear all obstacles. It is common practice to set this value to the top of Z. This height is used whenever moving in the XY plane during a tool change. |
