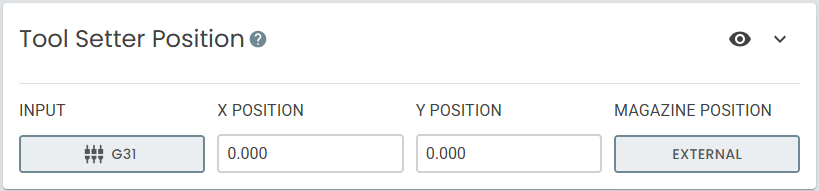

Tool Setter Position
The Tool Setter Position section defines where your tool setter is located and how it relates to your magazine.
This section is only available when Tool Measurement is enabled.
If using the RapidChange Optical Tool Setter, the distance from the pocket is 54.5mm on the same center line.
Fields
| Field | Description |
|---|---|
| X Position | X MACHINE COORDINATE of the tool setter. |
| Y Position | Y MACHINE COORDINATE of the tool setter. |
Selections
| Field | Control | Options | Description |
|---|---|---|---|
| Input |  |
 |
Input / G-Code designation for the tool setter signal. |
| Magazine Position |  |
 |
Position of the tool setter relative to the magazine. This determines when the dust cover will close: External closes the dust cover before measuring; Internal, Pocket 1, or Pocket N (last pocket) closes the dust cover after measuring. |
