Macros

Profile Section

Errors

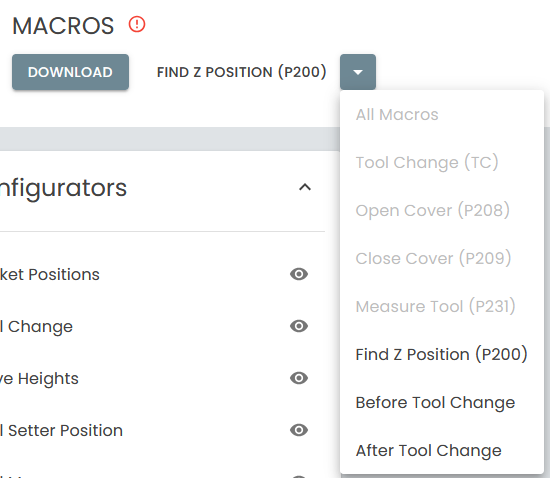

When an error is detected in your profile, macro generation is disabled for all macros except Find Z Position, Before Tool Change and After Tool Change.

Hover over the tag to view information about the offending error.

Copy

Clicking COPY copies the content of the selected macro to your clipboard. This is convenient for copy and paste of those macros that are not required to be loaded on your SD card.

Download

Clicking DOWNLOAD generates the programs and subroutines and then downloads a zipped folder containing the selected generation package. The folder must be unzipped before uploading to your MassoG3 controller.

Export

Clicking EXPORT generates the programs and subroutines and places them unzipped into a local directory.

If your browser does not support the export operation, the option will not appear on your screen.

Generation

Tool Change (TC.macro) - Loads the selected tool, unloading the current tool as required. Usage: T1 M6 loads Tool 1.
Open Cover (P208.macro) - Opens the dust cover. Usage G65 P208
Close Cover (P209.macro) - Closes the dust cover. Usage G65 P209
Measure Tool (P231.macro) - Execute tool measurement for the currently loaded tool. Usage G65 P231
Find Z Position (P200.macro) - If the IR beam is broken, moves up until the IR beam is clear, recording the Z machine coordinate of the position at which it clears. Usage G65 P200 with a tool loaded, in it's pocket deep enough to break the IR beam.
Before Tool Change (P201.macro) - The user-defined macro. Usage G65 P201
After Tool Change (P202.macro) - The user-defined macro. Usage G65 P201
