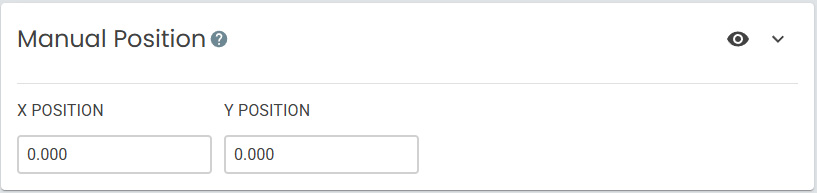

Manual Position
The Manual Position provides a location for loading and unloading manual tools—tools that cannot occupy a pocket in the magazine and must be loaded and unloaded by hand.
Any tool number that exceeds the number of pockets in your magazine will be treated as a manual tool.
Fields
| Field | Description |
|---|---|
| X Position | MACHINE COORDINATE X for loading/unloading manual tools. |
| Y Position | MACHINE COORDINATE Y for loading/unloading manual tools. |
